Superior Essex Series 11
OSP Fiber (outside plant)
Loose Tube Single Jacket All-Dielectric
CB-FB-OSP-11---xx0-
click here to view
Superior Essex 11 Series
items list
click here for
Part Number System
for Superior Essex Fiber Optic Cable
Product Description

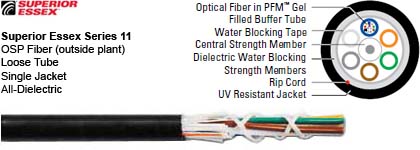

Loose tube cables are the
product of choice as the backbone in Outside Plant (OSP) environments. The
rugged loose tube design offers reliable transmission performance over a
broad temperature range. Optical fibers are placed inside filled buffer
tubes containing PFM™ gel. The core is constructed by stranding the buffer
tubes around a central member using a reverse oscillating lay (ROL). The
core is wrapped with flexible strength members covered with a water blocking
tape, then encased with a black jacket. A rip cord is included under the
jacket for ease of entry.
Applications
-
Underground duct and lashed aerial
-
Trunk, distribution and feeder cable
-
Local loop, metro, long-haul and broadband network
Features
-
Available with up to 288-fiber
-
Multiple fiber types including hybrids
-
Central strength members available in metallic or
dielectric
-
Dry (SAP) core standard
-
Reduces cable prep and
installation time
-
Standard tube size for all fiber counts
-
PFM™ gel
-
Non-sticky gel speeds fiber access and cleanup
Benefits
-
High fiber density
-
Multiple network applications
-
Metallic option offers ease of location, dielectric
design eliminates grounding issues
-
Reduces the number of tools required
-
Non-sticky gel speeds fiber access and cleanup
Specification
-
Fiber Count Available in 6-fiber up to 288-fiber
-
Maximum Tensile Loading lbs (N)
Install: 600 (2,700)
Long Term: 200 (890)
-
Standards Compliance
Telcordia GR-20-CORE
RDUP PE-90 Designation MLT
ICEA S-87-640-2006
RoHS-compliant
Environmental Specifications
Part Numbers and Physical Characteristics
|
Part Number
1 |
Fiber Count |
Nominal Diameter
in (mm) |
Approx. Weight
lbs/kft (kg/km) |
Minimum Bend Radius |
Install
in (mm) |
Long Term
in (mm) |
|
11006xx01 |
6 |
0.43 (10.9) |
50 (75) |
8.6 (218) |
4.3 (109) |
|
11012xx01 |
12 |
0.43 (10.9) |
50 (75) |
8.6 (218) |
4.3 (109) |
|
11024xx01 |
24 |
0.43 (10.9) |
50 (75) |
8.6 (218) |
4.3 (109) |
|
11036xx01 |
36 |
0.43 (10.9) |
50 (75) |
8.6 (218) |
4.3 (109) |
|
11048xx01 |
48 |
0.43 (10.9) |
50 (75) |
8.6 (218) |
4.3 (109) |
|
11072xx01 |
72 |
0.47 (12.0) |
66
(99) |
9.4
(239) |
4.7 (119) |
|
11096xx01 |
96 |
0.55 (13.9) |
87
(130) |
11.0
(279) |
5.5
(140) |
|
11144xx01 |
144 |
0.69 (17.5) |
142
(211) |
13.8
(351) |
6.9
(175) |
|
11216xx01 |
216 |
0.72 (18.3) |
141
(209) |
14.4
(366) |
7.2
(183) |
|
11288xx01 |
288 |
0.81 (20.5) |
183
(272) |
16.2
(411) |
8.1
(206) |
|
