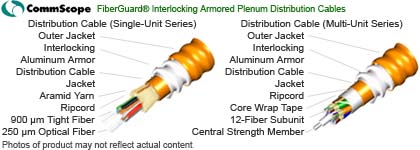

Commscope FiberGuard®
Interlocking Armored Plenum Distribution Cables
 CB-FB-ARM-xxx

click on the link to view
> Item List: Commscope FastFiber® FiberGuard® Plenum Distribution Cable
> P/N System: Part Number System for Commscope

Features and Benefits

• Cables are protected with an interlocking armor to shield against damage
• Used in Local Area Networks, Factory Automation, Critical Data Lines, Video, Robotics, Commercial
• Construction & Renovations, Heavy Industry and High Security Area applications
• Aluminum interlocking armor with overall jacket
• NEC/CEC compliant
• Outstanding mechanical protection for sensitive cables combined with excellent flexibility


Sample: P-072-DZ-8W-F MU YL
1 2 3 4 5 6 7
P 072 DZ 8W F MU YL
Cable Style Fiber Count

Cable Construction

 Fiber Type Jacket Print Miscellaneous Color Field

Note:
>

Position 1: Cable Style - P-072-DZ-8W-F MU YL

  • Z - Non-Halogen Indoor/Outdoor

  • P - Plenum

  • R - Riser

Position 2: Fiber Count - P-072-DZ-8W-F MU YL
  • Total Fiber Count - 6 ~ 144 Fibers

Position 3: Cable Construction - P-072-DZ-8W-F MU YL

  • DZ - Distribution Aluminum Armor

  • LZ - Stranded Loose Tube Aluminum Armor

  • OZ - Indoor/Outdoor Tight Buffered Aluminum Armor

Position 4: Fiber Type - P-072-DZ-8W-F MU YL

  • 8W - TeraSPEED single-mode

  • 6F - OptiSPEED 62.5/125μm FDDI Grade, multimode (OM1)

  • 5M - 50μm, LazrSPEED 150, multimode (OM2+)

  • 5L - 50μm, LazrSPEED 300, multimode (OM3)

  • 5K - 50μm, LazrSPEED 550, multimode (OM4)

Position 5: Jacket Print - P-072-DZ-8W-F MU YL

  • F - Printed in Feet (Standard)

  • M - Printed in Meters

  • X - Special Print

Position 6: Miscellaneous Values - P-072-DZ-8W-F MU YL

  • 12 - 12 Fibers per Tube (LZ)

  • SU - Single Unit (DZ, OZ)

  • MU - Multi Unit (DZ, OZ)

Position 7: Color Field - P-072-DZ-8W-F MU YL

  • BK - Black, Indoor/Outdoor

  • OR - Orange, 62.5μm Multimode & Composite

  • SL - Slate, Multimode or Composite Containing Multimode

  • YL - Yellow, Single-mode

  • AQ - Aqua, 50μm LazrSPEED & LazrSPEED Composite

Fiber identification colors follow the ANSI/TIA-568-C.2 Color Code.
Visit www.commscope.com for FiberGuard product specification sheets.
