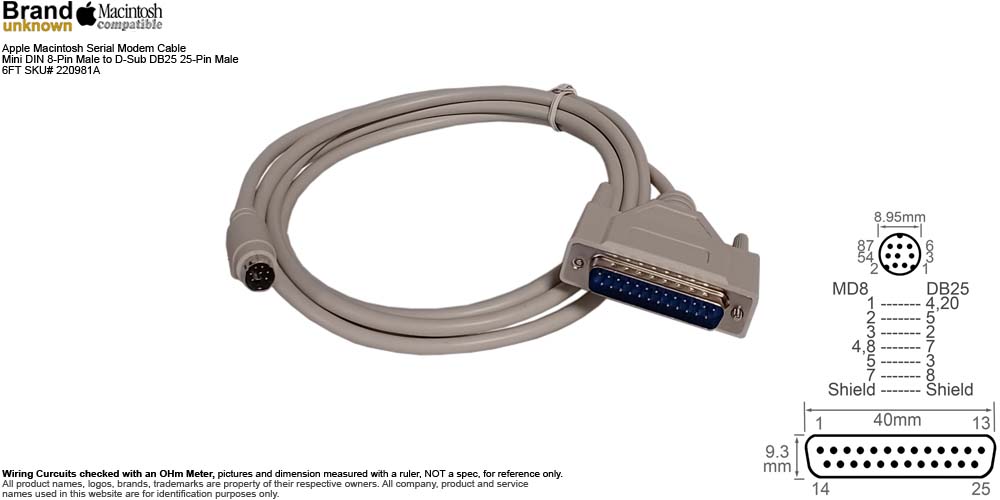

Apple Macintosh Serial Modem Cable
Mini DIN 8-Pin Male to D-Sub DB25 25-Pin Male 6FT SKU#
220981A
CB-8MDM-25DM-Sxx
Features:
- Description:
Apple Macintosh Serial Modem Cable Mini DIN 8-Pin Male to
D-Sub DB25 25-Pin Male 6FT SKU# 220981A
- Manufacturer:
Unknown
- Brand Name or
Distributor:
Apple Macintosh
- Model:
SKU# 220981A
- Connectors:
-
Mini DIN 8-Pin Male
-
D-Sub DB25 25-Pin Male
- Pin
Configuration:
-
Mini DIN 8-Pin Male Pin-1 to
DB25 Male Pin 4, 20
-
Mini DIN 8-Pin Male Pin-2 to
DB25 Male Pin 5
-
Mini DIN 8-Pin Male Pin-3 to
DB25 Male Pin
2
-
Mini DIN 8-Pin Male Pin-4,
8 to DB25 Male Pin
7
-
Mini DIN 8-Pin Male Pin-5 to
DB25 Male Pin 3
-
Mini DIN 8-Pin Male Pin-7 to
DB25 Male Pin 8
-
Mini DIN 8-Pin Shield to
DB25 Male Shield
- Overall Length:
6 FT
- Condition:
New
- Weight: 4.5 oz
(Estimated Shipping
Weight 8 oz)
- Package: Non-retail
Packaging, in Unprinted Reused Box or Plastic Bag.
- For use with or
pulled from: (for reference only)
-
Apple Macintosh Serial Modem Cable
|
