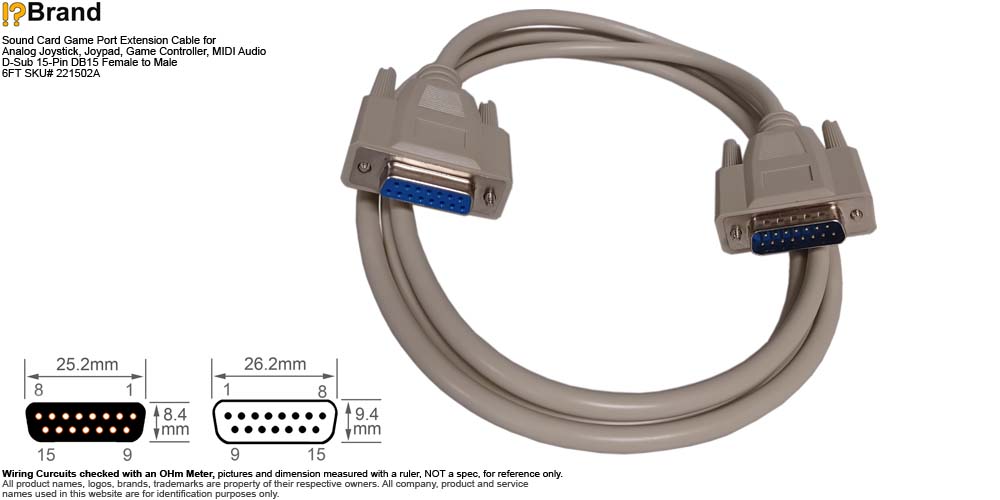

Sound Card Game Port Extension Cable
for Analog Joystick, Joypad, Game Controller, MIDI Audio
D-Sub 15-Pin DB15 Female to Male 6FT
SKU# 221502A
CB-15DBMF-15DBM-xxx
Features:
- Description:
Sound Card Game Port Extension Cable, for Analog Joystick, Joypad,
Game Controller, D-Sub 15-Pin DB15 Female to Male 6FT, SKU# 221502A
- Manufacturer:
Unknown
- Brand Name or
Distributor:
Unbranded
- Model:
SKU# 221502A
- Connectors:
- D-Sub 15-pin
DB15 Male
- D-Sub 15-pin
DB15 Female
- Overall Length:
6 FT
- Condition:
New
- Weight: 7.8 oz
(Estimated Shipping
Weight 10 oz)
- Package: Non-retail
Packaging, in Unprinted Reused Box or Plastic Bag.
- For use with or
pulled from: (for reference only)
- Game port is the traditional connection for
video game input devices on an
x86-based
PCs. The game port is usually integrated
with a PC I/O or sound card, either
ISA or
PCI, or as an on-board feature of some
motherboards.
-
The original game port design by IBM initially allowed four analog axes
and four buttons on one port, allowing two joysticks or four paddles to
be connected, although this required a special "Y-splitter" cable and
isn't fully supported by some combined MIDI / Game ports usually found
on sound cards.
-
Some poorly implemented game ports (usually built-in on old
motherboards and I/O cards) didn't fully support either 4 axes or 4
buttons, making only the use of a single 2-axis and 2-button
joystick possible.
-
The 15-pin game port which also acts as a MIDI port has been dropped
from some newer PCs in favor of the USB port, while some
motherboards still include it and allow to configure it as a MIDI
port or a game port, through their BIOS.
|
