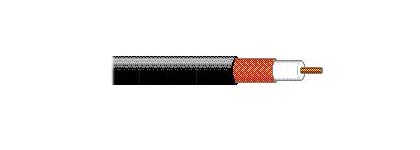

| ... | Armor o.d. max. | Jacket o.d. max. | Braid o.d. max. | Dielectric o.d. max. | Center Conductor stranding | Center Conductor o.d. nom. | Nominal Impedance OHMS | Max freq. Ghz | M17/ Replacement | Notes |
| M17/72-RG211 | - | 0.745 | .670 S | 0.625 | SOLID | 0.192 | 50 | 1 | - | - |
| M17/73-RG212 | 0.475 | 0.336 | .265 D | 0.189 | SOLID | 0.0556 | 50 | 11 | - | - |
| M17/74-RG213 | - | 0.412 | .340 S | 0.292 | 7/.0296 | 0.0888 | 50 | 1 | - | - |
| M17/74-RG215 | 0.475 | 0.412 | .340 D | 0.292 | 7/.0296 | 0.0888 | 50 | 1 | - | - |
| M17/75-RG214 | - | 0.432 | .360 D | 0.292 | 7/.0296 | 0.0888 | 50 | 11 | - | - |
| M17/77-RG216 | - | 0.432 | .360 D | 0.292 | 7/.0159 | 0.0477 | 75 | 3 | - | - |
| M17/78-RG217 | - | 0.545 | .463 D | 0.38 | SOLID | 0.106 | 50 | 30 | - | - |
| M17/79-RG218 | - | 0.88 | .760 S | 0.69 | SOLID | 0.195 | 50 | 1 | - | - |
| M17/79-RG21 | 0.945 | 0.88 | .760 S | 0.69 | SOLID | 0.195 | 50 | 1 | - | - |
| M17/81-00001 | - | 1.135 | .990 S | 0.925 | SOLID | 0.26 | 50 | - | - | - |
| M7/81-00002 | 1.195 | 1.135 | .990 S | 0.925 | SOLID | 0.26 | 50 | - | - | - |
| M17/84-RG223 | - | 0.216 | .176 D | 0.12 | SOLID | 0.035 | 50 | 12.4 | - | - |
| M17/90-RG71 | - | 0.25 | .208 D | 0.151 | SOLID | 0.0253 | 93 | - | - | - |
| M17/93-RG178 | - | 0.075 | .054 S | 0.035 | 7/.004 | 0.012 | 50 | 30 | - | - |
| M17/93-00001 | - | 0.075 | .054 S | 0.035 | 7/.004 | 0.012 | 50 | 3 | - | - |
| M17/94-RG179 | - | 0.105 | .084 S | 0.066 | 7/.004 | 0.012 | 75 | 3 | - | - |
| M17/95-RG180 | - | 0.145 | .124 S | 0.105 | 7/.004 | 0.012 | 95 | 30 | - | - |
| M17/97-RG210 | - | 0.25 | .191 S | 0.151 | SOLID | 0.0253 | 93 | 3 | - | - |
| M17/110-RG302 | - | 0.207 | .176 S | 0.15 | SOLID | 0.0253 | 75 | 3 | - | - |
| M17/111-RG303 | - | 0.175 | .146 S | 0.121 | SOLID | 0.037 | 50 | 3 | - | - |
| M17/112-RG304 | - | 0.288 | .250 D | 0.19 | SOLID | 0.059 | 50 | 12 | - | - |
| M17/113-RG316 | - | 0.102 | 0.0815 | 0.063 | 7/.0067 | 0.0201 | 50 | 3 | - | - |
| M17/116-RG307 | - | 0.27 | 0.237 | 0.149 | 19/.0058 | 0.029 | 75 | 1 | - | - |
| M17/119-RG174 | - | 0.115 | 0.0885 | 0.063 | 7/.0063 | 0.0189 | 50 | 1 | - | - |
| M17/127-RG393 | - | 0.4 | .360 D | 0.29 | 7/.0312 | 0.094 | 50 | 11 | - | - |
| M17/128-RG400 | - | 0.2 | .171 D | 0.121 | 19/.008 | 0.0384 | 50 | 12.4 | - | - |
| M17/129-RG401 | - | 0.251 | - | 0.211 | SOLID | 0.0641 | 50 | 18 | - | SEMI RIGID |
| M17/129-0001 | - | 0.251 | - | 0.211 | SOLID | 0.0641 | 50 | 18 | - | SEMI RIGID |
| M17/130-RG402 | - | 0.142 | - | 0.1185 | SOLID | 0.0362 | 50 | 20 | - | SEMI RIGID |
| M17/130-00001 | - | 0.143 | - | 0.1185 | SOLID | 0.0362 | 50 | 20 | - | SEMI RIGID |
| M17/130-00002 | - | 0.142 | - | 0.1185 | SOLID | 0.0362 | 50 | 20 | - | SEMI RIGID |
| M17/131-RG403 | - | 0.128 | .098 D | 0.035 | 7/AWG38 | 0.012 | 50 | 10 | - | - |
| M17/132-RG404 | - | 0.077 | .056 S | 0.038 | 7/AWG38 | 0.012 | 50 | 1 | - | - |
| M17/133-RG405 | - | 0.0875 | - | 0.068 | SOLID | 0.0201 | 50 | 20 | - | SEMI RIGID |
| M17/133-00001 | - | 0.0885 | - | 0.068 | SOLID | 0.0201 | 50 | 20 | - | SEMI RIGID |
| M17/133-00002 | - | 0.0875 | - | 0.068 | SOLID | 0.0201 | 50 | 20 | - | SEMI RIGID |
| M17/134-00001 | - | 0.25 | 0.203 | 0.12 | SOLID | 0.033 | 50 | 3 | - | TRIAX |
| M17/134-00002 | - | 0.25 | 0.203 | 0.12 | SOLID | 0.033 | 50 | 3 | - | TRIAX |
| M17/136-00001 | - | 0.105 | .084 S | 0.066 | 7/.004 | 0.012 | 75 | 3 | - | - |
| M17/137-00001 | - | 0.145 | .124 S | 0.105 | 7/.004 | 0.012 | 95 | 3 | - | - |
| M17/138-00001 | - | 0.102 | .081 S | 0.063 | 7/.0067 | 0.0201 | 50 | 3 | - | - |
| M17/161-00001 | - | 0.745 | .670 S | 0.625 | SOLID | 0.192 | 50 | 400MhZ | - | - |
| M17/161-00002 | 0.795 | 0.745 | .670 S | 0.625 | SOLID | 0.192 | 50 | 400Mhz | - | - |
| M17/162-00001 | - | 0.336 | .265 d | 0.189 | SOLID | 0.0556 | 50 | 400Mhz | - | - |
| M17/165-00001 | - | 0.555 | .463 D | 0.38 | SOLID | 0.106 | 50 | 400Mhz | - | - |
| M17/165-0000 | 0.615 | 0.555 | .463 d | 0.38 | SOLID | 0.106 | 50 | 400Mhz | - | - |
| M17/168-00001 | - | 0.43 | .325 D | 0.26 | 7/.028 | 0.084 | 50 | 400Mhz | - | - |
| M17/168-00002 | - | 0.354 | .325 D | 0.26 | 7/.028 | 0.084 | 50 | 400Mhz | - | - |
| M17/176-00002 | - | 0.134 | .102 S | 0.044 | 19/AWG36 | 0.024 | 77 | 10Mhz | - | - |
| M17/177-00001 | - | 0.189 | 0.162 | 0.105 | 7/.004 | 0.012 | 95 | 3 | - | - |
| M17/178-00001 | - | 0.27 | 0.225 | 0.105 | 7/.004 | 0.012 | 95 | 3 | - | - |
| M17/179-00001 | - | 0.195 | 0.17 | 0.066 | 7/.004 | 0.012 | 75 | 3 | - | - |
| RG5B/U | - | 0.335 | .260 D | 0.185 | SOLID | 0.051 | 50 | - | 73-RG212 | - |
| RG6A/U | - | 0.336 | .264 D | 0.189 | SOLID | 0.029 | 0.75 | - | 2-RG6 | - |
| RG8A/U | - | 0.415 | .340 S | 0.295 | 7/AWG21 | 0.086 | 52 | - | 74-RG213 | - |
| RG9B/U | - | 0.43 | .355 D | 0.285 | 7/AWG21 | 0.086 | 50 | - | 75-RG214 | - |
| RG10A/U | 0.475 | 0.415 | .340 S | 0.295 | 7/AWG21 | 0.086 | 52 | - | 74-RG215 | - |
| RG11A/U | - | 0.412 | .340 S | 0.292 | 7/AWG26 | 0.048 | 75 | - | 6-RG11 | - |
| RG12A/U | 0.475 | 0.412 | .340 S | 0.292 | 7/.0159 | 0.048 | 75 | - | 6-RG12 | - |
| RG13A/U | - | 0.43 | .355 D | 0.29 | 7/AWG26 | 0.048 | 74 | - | 77-RG216 | - |
| RG14A/U | - | 0.558 | .463 D | 0.383 | SOLID | 0.102 | 52 | - | 78-RG217 | - |
| RG17/U | - | 0.885 | .760 S | 0.695 | SOLID | 0.188 | 52 | - | 79-RG218 | - |
| RG17A/U | - | 0.885 | .760 S | 0.695 | SOLID | 0.188 | 52 | - | 79-RG218 | - |
| RG18/U | 0.945 | 0.885 | .760 S | 0.695 | SOLID | 0.188 | 52 | - | 79-RG219 | - |
| RG18A/U | 0.945 | 0.885 | .760 S | 0.695 | SOLID | 0.188 | 52 | - | 79-RG219 | - |
| RG19/U | - | 1.135 | .760 S | 0.695 | SOLID | 0.188 | 52 | - | 81-00001 | - |
| RG20A/U | 1.195 | 1.135 | .990 S | 0.925 | SOLID | 0.25 | 52 | - | 81-00002 | - |
| RG21/U | - | 0.339 | .264 D | 0.192 | SOLID | 0.051 | 53 | - | 162-00001 | - |
| RG21A/U | - | 0.339 | .264 D | 0.192 | SOLID | 0.051 | 53 | - | 162-00001 | - |
| RG22B/U | - | 0.43 | .355 D | 0.291 | 7/.0152 | 0.046 | 95 | 200Mhz | 15-RG22 | TWIN |
| RG55A/U | - | 0.216 | .171 D | 0.116 | SOLID | 0.035 | 50 | - | 84-RG223 | - |
| RG55B/U | - | 0.206 | .176 D | 0.121 | SOLID | 0.032 | 53.5 | - | 84-RG223 | - |
| RG58/U | - | 0.199 | - | 0.12 | SOLID | 0.032 | 53.5 | - | 28-RG58 | - |
| RG58A/U | - | 0.199 | - | 0.12 | 19/AWG33 | 0.038 | 52 | - | 28-RG58 | - |
| RG58B/U | - | 0.199 | - | 0.12 | SOLID | 0.032 | 53.5 | - | 28-RG58 | - |
| RG58C/U | - | 0.199 | .150 S | 0.12 | 19.AWG33 | 0.038 | 50 | - | 28-RG58 | - |
| RG59/U | - | 0.242 | .191 S | 0.15 | SOLID | - | 73 | - | 29-RG59 | - |
| RG59A/U | - | 0.242 | .191 S | 0.15 | SOLID | 0.023 | 73 | - | 29-RG59 | - |
| RG59B/U | - | 0.246 | .191 S | 0.15 | SOLID | 0.023 | 75 | - | 29-RG59 | - |
| RG62/U | - | 0.249 | .191 S | 0.151 | SOLID | 0.025 | 93 | - | 30-RG62 | - |
| RG62A/U | - | 0.249 | .191 S | 0.151 | SOLID | 0.025 | 93 | - | 30-RG62 | - |
| RG62B/U | - | 0.249 | .191 S | 0.151 | 7/AWG32 | 0.025 | 93 | - | 30-RG62 | - |
| RG63B/U | - | 0.415 | .340 S | 0.295 | SOLID | 0.025 | 125 | - | 31-RG63 | - |
| RG71B/U | - | 0.25 | .208 D | 0.151 | SOLID | 0.025 | 93 | - | 90-RG71 | - |
| RG82/U | - | 0.757 | - | 0.675 | SOLID | 0.125 | 50 | - | - | - |
| RG108A/U | - | 0.245 | .177 S (NOM) | 0.082 | 7/AWG28 | - | 78 | - | 45-RG108 | TWIN |
| RG114/U | - | 0.415 | .340 S | 0.295 | SOLID | 0.007 | 185 | - | 47-RG114 | - |
| RG114A/U | - | 0.415 | .340 S | 0.295 | SOLID | 0.007 | 185 | - | 47-RG114 | - |
| RG115/U | - | 0.385 | .320 D | 0.255 | 7/.028 | - | 50 | - | 168-00001 | - |
| RG115A/U | - | 0.43 | .325 D | 0.26 | 7/AWG21 | 0.086 | 50 | - | 168-00001 | - |
| RG117/U | - | 0.745 | .670 S | 0.625 | SOLID | 0.188 | 50 | - | 72-RG211 | - |
| RG117A/U | - | 0.745 | .670 S | 0.625 | SOLID | 0.188 | 50 | - | 72-RG211 | - |
| RG118/U | 0.795 | 0.745 | .670 S | 0.625 | SOLID | 0.188 | 50 | - | 161-00002 | - |
| RG118A/U | 0.795 | 0.745 | .670 S | 0.625 | SOLID | 0.188 | 50 | - | 161-00002 | - |
| RG122/U | - | 0.165 | .126 S | 0.099 | 27/AWG36 | -0.03 | 50 | - | 54-RG122 | - |
| RG141/U | - | 0.195 | 0.146 | 0.121 | SOLID | 0.036 | 50 | - | 111-RG303 | - |
| RG141A/U | - | 0.195 | .146 S | 0.121 | SOLID | 0.039 | 50 | - | 111-RG303 | - |
| RG142A/U | - | 0.206 | .171 D | 0.121 | SOLID | 0.039 | 50 | - | 60-RG142 | - |
| RG142B/U | - | 0.2 | .171 D | 0.121 | SOLID | 0.039 | 50 | - | 60-RG142 | - |
| RG143/U | - | 0.332 | 0.25 | 0.19 | SOLID | 0.057 | 50 | - | 112-RG304 | - |
| RG143A/U | - | 0.332 | .250 D | 0.19 | SOLID | 0.059 | 50 | - | 112-RG304 | - |
| RG174/U | - | 0.105 | .088 S | 0.063 | 7/AWG34 | 0.02 | 50 | - | 119-RG174 | - |
| RG174A/U | - | 0.105 | .088 S | 0.063 | 7/AWG34 | 0.02 | 50 | - | 119-RG174 | - |
| RG178B/U | - | 0.075 | .054 S | 0.036 | 7/AWG38 | 0.012 | 50 | - | 93-RG178 | - |
| RG179B/U | - | 0.105 | .084 S | 0.066 | 7/AWG38 | 0.012 | 75 | - | 94-RG179 | - |
| RG180B/U | - | 0.145 | .124 S | 0.105 | 7/AWG38 | 0.012 | 95 | - | 95-RG180 | - |
| RG187A/U | - | 0.11 | .084 S | 0.066 | 7/AWG38 | 0.012 | 75 | - | 136-00001 | - |
| RG188A/U | - | 0.11 | .081 S | 0.063 | 7/.0067 | 0.02 | 50 | - | 138-00001 | - |
| RG189/U | - | 0.875 | - | 0.632 | SOLID | 0.251 | 50 | - | - | HELIX (NOM DIMS.) |
| RG195/U | - | 0.155 | .124 S | 0.105 | 7/.004 | 0.012 | 95 | - | 137-00001 | - |
| RG195A/U | - | 0.155 | .124 S | 0.105 | 7/AWG38 | 0.012 | 95 | - | 137-00001 | - |
| RG196/U | - | 0.08 | .054 S | 0.036 | 7/.004 | 0.012 | 50 | - | 93-0001 | - |
| RG196A/U | - | 0.08 | .054 S | 0.036 | 7/AWG38 | 0.012 | 50 | - | - | - |
| RG210/U | - | 0.25 | .191 S | 0.151 | SOLID | 0.025 | 93 | - | 97-RG210 | - |
| RG211A/U | - | 0.745 | .670 S | 0.625 | SOLID | 0.19 | 50 | - | 72-RG211 | - |
| RG212/U | - | 0.336 | .265 D | 0.189 | SOLID | 0.056 | 50 | - | 73-RG212 | - |
| RG213/U | - | 0.412 | .340 S | 0.292 | 7/.0296 | 0.089 | 50 | - | 74-RG213 | - |
| RG214/U | - | 0.432 | .360 D | 0.292 | 7/.0296 | 0.089 | 50 | - | 75-RG214 | - |
| RG215/U | 0.475 | 0.412 | .340 S | 0.292 | 7/.0296 | 0.089 | 50 | - | 74-RG215 | - |
| RG216/U | - | 0.432 | .360 D | 0.292 | 7/AWG26 | 0.048 | 75 | - | 77-RG216 | - |
| RG217/U | - | 0.555 | .463 D | 0.38 | SOLID | 0.106 | 50 | - | 78-RG217 | - |
| RG218/U | - | 0.88 | .760 S | 0.69 | SOLID | 0.195 | 50 | - | 79-RG218 | - |
| RG219/U | 0.945 | 0.88 | .760 S | 0.69 | SOLID | 0.195 | 50 | - | 79-RG219 | - |
| RG220/U | - | 1.135 | .990 S | 0.925 | SOLID | 0.26 | 50 | - | 81-00001 | - |
| RG221/U | 1.195 | 1.135 | .990 S | 0.925 | SOLID | 0.26 | 50 | - | 81-00002 | - |
| RG222/U | - | 0.336 | .264 D | 0.189 | SOLID | 0.056 | 50 | - | 162-00001 | - |
| RG223/U | - | 0.216 | .176 D | 0.12 | SOLID | 0.035 | 50 | - | 84-RG223 | - |
| RG224/U | 0.615 | 0.555 | .463 D | 0.38 | SOLID | 0.106 | 50 | - | 165-00002 | - |
| RG225/U | - | 0.44 | .360 D | 0.29 | 7/.031 | 0.094 | 50 | - | 127-RG393 | - |
| RG228/U | -795 | 0.745 | .670 S | 0.625 | SOLID | 0.19 | 50 | - | 161-00002 | - |
| RG228A/U | 0.795 | 0.745 | .670 S | 0.625 | SOLID | 0.19 | 50 | - | 161-00002 | - |
| RG301/U | - | 0.25 | .215 S | 0.19 | 7/.0203 | 0.0609 | 50 | - | 109-RG301 | - |
| RG302/U | - | 0.206 | .176 S | 0.151 | SOLID | 0.025 | 75 | - | 109-RG302 | - |
| RG303/U | - | 0.175 | .146 S | 0.121 | SOLID | 0.039 | 50 | - | 111-RG303 | - |
| RG304/U | - | 0.285 | .250 D | 0.19 | SOLID | 0.059 | 50 | - | 112-RG304 | - |
| RG316/U | - | 0.102 | .081 S | 0.063 | 7/.0067 | 0.02 | 50 | - | 113-RG316 | - |
| RG389/U | - | 0.875 | - | 0.635 | SOLID | 0.25 | 50 | - | - | SPLINE (NON DIMS.) |
| RG393/U | - | 0.4 | .360 D | 0.29 | 7/.0312 | 0.094 | 50 | - | 127-RG393 | - |
| RG400/U | - | 0.2 | .171 D | 0.121 | 19/AWG33 | 0.039 | 50 | - | 128-RG400 | - |
| RG401/U | - | 0.251 | - | 0.211 | SOLID | 0.0641 | 50 | - | 129-RG401 | SEMI RIGID |
| RG402/U | - | 0.141 | - | 0.118 | SOLID | 0.036 | 50 | - | 130-RG402 | SEMI RIGID |
| RG403/U | - | 0.128 | .098 D | 0.036 | 7/AWG38 | 0.012 | 50 | - | 131-RG403 | - |
| RG404/U | - | 0.075 | .056 S | 0.036 | 7/AWG38 | 0.012 | 50 | - | 132-RG404 | - |
| RG405/U | - | 0.086 | - | 0.066 | SOLID | 0.02 | 50 | - | 133-RG405 | SEMI RIGID |
| M17/2-RG6 | - | 0.336 | .264 D | 0.189 | SOLID | 0.0285 | 75 | 3 | - | - |
| M17/6-RG11 | - | 0.412 | .340 S | 0.292 | 7/.0159 | 0.0477 | 75 | 1 | - | - |
| M17/6-RG12 | 0.475 | 0.412 | .340 S | 0.292 | 7/.0159 | 0.0477 | 75 | 1 | - | - |
| M17/15-RG22 | - | 0.43 | .355 D | 0.291 | 7/.0152 | 0.046 | 95 | 200 Mhz | - | TWIN |
| M17/28-RG58 | - | 0.199 | .150 S | 0.12 | 19/.0072 | 0.0355 | 50 | 1 | - | - |
| M17/XX-RG59 | - | 0.246 | .191 S | 0.15 | SOLID | 0.0226 | 75 | 1 | - | - |
| M17/XX-RG62 | - | 0.249 | 191 S | 0.15 | SOLID | 0.0253 | 93 | 1 | - | - |
| M17/31-RG63 | - | 0.415 | .340 S | 0.295 | SOLID | 0.0253 | 125 | 1 | - | - |
| M17/45-RG108 | - | 0.245 | .177 D(NOM) | 0.081 | 7/.0126 | 0.0378 | 78 | 10 MHZ | - | TWIN |
| M17/47-RG114 | - | 0.415 | .340 S | 0.295 | SOLID | .007 185 | 1 | 150 | - | - |
| M17/54-RG122 | - | 0.165 | .126 S | 0.099 | 27/.005 | 0.0308 | 50 | 1 | - | - |
| M17/60-RG142 | - | 0.2 | .171 D | 0.121 | SOLID | 0.037 | 50 | 12.4 | - | - |
| Belden 8218 | 0.15 | 0.119 | 0.101 | - | 0.017 | 75 | 1 | - | COAX | |
| Belden 8232 | 0.315 | 0.256 | 0.143 | - | 0.032 | 75 | - | - | TRIAX | |
| Belden 8281 | 0.304 | 0.257 | 0.198 | - | 0.032 | 75 | 1 | - | COAX | |
| Belden 8422 | 0.231 | - | - | - | 0.025 | - | - | - | TWIN | |
| Belden 9272 | 0.242 | 0.17 | 0.075 | - | 0.037 | 78 | - | - | TWIN | |
| Bell & Howell 367863A | 0.25 | 0.195 | - | - | 0.022 | 124 | - | - | TWIN | |
| DOD/DNA RF-21 | 0.245 | 0.195 | 0.081 | - | 0.022 | 124 | - | - | TWIN | |
| d3-7619-5/336 | - | - | - | - | - | - | - | 178-00001 | TRIAX | |
| d3-7619-5/338 | - | - | - | - | - | - | - | 179-00001 | TRIAX | |
| Essex 21-204 | 0.285 | 0.195 | 0.116 | - | 0.036 | 50 | - | - | TRIAX | |
| Essex 21-597 | 0.15 | 0.12 | 0.1 | - | 0.017 | 75 | - | - | COAX | |
| Grumman GC875TM24H | 0.152 | 0.14 | 0.045 | - | 0.024 | - | - | - | TWIN | |
| LASL Type C 9Y19503 | 0.2 | .150 S | 0.123 | 19/.0117 | 0.059 | - | - | - | Coax (Max Dims.) | |
| Microdot 250-4804 | 0.145 | 0.12 | 0.035 | - | 0.0113 | 48 | - | - | - | |
