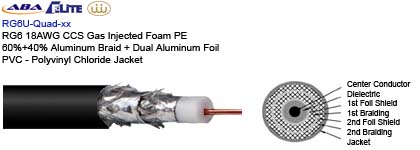

• Document: A30006U006
• Style: RG-6/U
• Size: 1/1.02 CCS All Double Braid
• Made by: Wonderful Hi-Tech Co., Ltd.
  Office: 72 Wu Kong 6th Road, Wu Ku Ind. District, Taipei Hsien, Taiwan
  Factory: 17 Pei Yuan Road, Chung-Li Ind. Park, Taiwan

Specification

• Style: 80°C 30V Coaxial
• Document: A30006U006
• Size: RG-6/U Double Braid
• Established Date: 2003/03/11

Standard:

• Conductor:
  • Size: AWG 18
  • Material: Copper Clad Steel
  • Conductors No.: 1
  • Conductors Size: 1.02 mm
  • Conductor O.D.: 1.02 mm
• Insulation:
  • Average Thickness: 1.78 mm
  • Diameter: 4.57 +/- 0.15 mm
  • Material: Gas Injected Foam PE
  • Color: Nature
• Shielded:
  • Material: Aluminum Mylar
  • Direction: Straight
  • Thickness: 20 × 0.025 mm
  • Aluminum Direction: Outside
• Braid:
  • Material: Aluminum Wire
  • Construction: 16 / 4 / 0.16 mm
  • Coverage: 60 %
• Shielded:
  • Material: AL / MYLAR / AL
  • Direction: Straight
  • Thickness: 20×0.038 mm
• Braid:
  • Material: Aluminum Wire
  • Construction: 16 / 3 / 0.16 mm
  • Coverage:  40 %
• Jacket:
  • Average Thickness: 0.70 mm
  • Diameter: 7.50 +/- 0.15 mm
  • Material: PVC
  • Color: Black
• Marking:
  • E77981 AWM 1354 RG-6/U QUAD SHIELD 18AWG
• Electrical & Physical Properties:
  • Item: RG-6/U
  • Rating Temp Voltage: 80°C 30V
  • Conductor Resistance: 23.26 OHM/KM/20°C MAX.
  • Insulation Resistance: 100 MEGA OHM/KM MIN.
  • Dielectric Strength: AC 1.0 KV/°C
  • Spark Test: 5 KV
• Jacket:
  • Unaged:
    • Tensile Strength: 1500 PSI MIN.( 1.05 Kg / m °C )
    • Elongation: 100% MIN.
  • Aged:
    • Tensile Strength: UNAGED MIN.70%(168HRS×113°C )
    • Elongation UNAGED MIN.65%(168HRS×113°C )
• Nom. Impedance: 75 Ohms
• Nom. Capacitance: 53+/-3 pF/m
• Nom. Vel. of Prop.: 80%
• Flame Test: VW-1: OK
• Attenuation (dB/100m):
  • 1MHz 1.7
  • 50MHz 5.1
  • 100MHz 6.6
  • 200MHz 9.2
  • 400MHz 13.1
  • 1GHz 21.5
