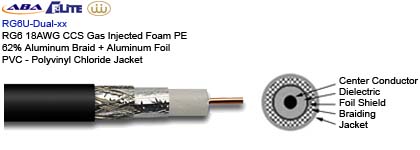

RG6 Coax Cable ABA RG6U-Dual-xx
18AWG Solid Copper Clad Steel
Gas Injected Foam PE
62% Aluminum Braid + Aluminum Foil
PVC - Polyvinyl Chloride Jacket
CB-RG6-xxx

Manufacturer:

WONDERFUL HI-TECH CO., LTD

Document No.:

A30006A002 ( Established 06/05/2003 )

Style:

RG-6A/U AL Braid

Specifications:

• Conductor

  • Size: 18 AWG

  • Material: Copper Clad Steel

  • Conductors No.: 1

  • Conductors Size: 1.02 mm

  • O.D.: 1.02 mm

• Insulation

  • Average Thickness: 1.78 mm

  • Diameter: 4.57 ±0.15 ,,

  • Material: Gas Injected Foam PE

  • Color: Nature

• Shielded

  • Material: AL-MYLAR

  • Direction: Straight

  • Thickness: 15 × 0.025 mm

  • Al direction: Outside

• Braid

  • Material: Aluminum Wire

  • Construction: 16 / 4 / 0.16 mm

  • Coverage: 62 %

• Jacket

  • Average Thickness: 0.85 mm

  • Diameter: 7.00 ±0.15 mm

  • Material: PVC

  • Color: Black

• Marking

  • RG-6/U COAXIAL CABLE WONDERFUL
