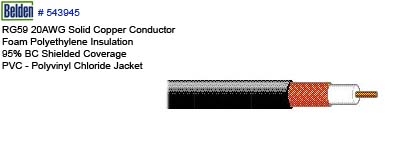

RG59 Coax Cable Belden 543945
RG59 20AWG Solid Copper Conductor
Foam Polyethylene Insulation
95% BC Shielded Coverage
PVC - Polyvinyl Chloride Jacket
CB-RG59-xxx

Link(s):

Description:

20 AWG solid bare copper conductor, foam polyethylene insulation, bare copper braid shield, PVC jacket, sequential footage marking every two feet.

Suitable Applications:

Suitable Applications Analog Video/CCTV Coax.

Physical Characteristics:

  • Conductor:
  • Number of Coax: 1
  • RG Type: 59/U
  • Series Type: Series 59
  • AWG: 20
  • Stranding: Solid
  • Conductor Diameter: .032 in.
  • Conductor Material: BC - Bare Copper

Insulation:

  • Insulation Material: Gas-injected FPE - Foam Polyethylene
  • Insulation Diameter: .145 in.

Outer Shield:

  • Outer Shield Type: Braid
  • Outer Shield Material: BC - Bare Copper
  • Outer Shield % Coverage: 95 %

Outer Jacket:

  • Outer Jacket Material: PVC - Polyvinyl Chloride

Overall Nominal Diameter:

  • Overall Nominal Diameter: .232 in.

Mechanical Characteristics:

  • Operating Temperature Range: -30°C To +75°C
  • UL Temperature Rating: 75°C
  • Bulk Cable Weight: 29 lbs/1000 ft.
  • Max. Recommended Pulling Tension: 57 lbs.
  • Min. Bend Radius (Install): 2.5 in.

Applicable Specifications and Agency Compliance:

  • Applicable Standards:
    • NEC/(UL) Specification: CM
    • NEC Articles: 800
    • CEC/C(UL) Specification: CM
    • EU CE Mark (Y/N): Yes
    • EU RoHS Compliant (Y/N): Yes
    • EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
  • Flame Test:
    • UL Flame Test: UL1685 UL Loading
    • C(UL) Flame Test: FT1

Stability:

  • Suitability - Indoor: Yes
  • Suitability - Outdoor: Yes - Black only
  • Suitability - Aerial: Yes - Black only


Plenum / Non-Plenum:

  • Plenum (Y/N): N

Electrical Characteristics:

  • Nom. Characteristic Impedance: 75 Ohms
  • Nom. Inductance: .097 µH/ft
  • Nom. Capacitance Conductor to Shield: 16.3 pF/ft
  • Nominal Velocity of Propagation: 83 %
  • Nominal Delay: 1.21 ns/ft
  • Nom. Conductor DC Resistance @ 20 Deg. C: 10.0 Ohms/1000 ft
  • Nominal Outer Shield DC Resistance @ 20°C: 3.5 Ohms/1000 ft
  • Nom. Attenuation:
    Frequency
    (MHz)    		  Attenuation
    (dB/100 ft)
    1 0.30
    5 0.65
    10 0.90
    50 1.90
    100 2.60
    200 3.60
    400 5.00
    700 7.00
    900 8.00
    1000 8/50

    Note:

    • Max. Operating Voltage - UL 300 V RMS

Put-Ups and Colors:

  • 543945 0091000
    • Description: RG-59/U COAX
    • Put-Up (ft.): 1000
    • Ship Weight (lbs.): 31
    • Jacket Color: WHITE
    • Notes: C
  • 543945 009500
    • Description: RG-59/U COAX
    • Put-Up (ft.): 500
    • Ship Weight (lbs.): 16
    • Jacket Color: WHITE
  • 543945 009U1000
    • Description: RG-59/U COAX
    • Put-Up (ft.): U1000
    • Ship Weight (lbs.): 25
    • Jacket Color: WHITE
  • 543945 009U500
    • Description: RG-59/U COAX
    • Put-Up (ft.): U500
    • Ship Weight (lbs.): 13
    • Jacket Color: WHITE
  • 543945 0101000
    • Description: RG-59/U COAX
    • Put-Up (ft.): 1000
    • Ship Weight (lbs.): 24
    • Jacket Color: BLACK
    • Notes: C
  • 543945 010500
    • Description: RG-59/U COAX
    • Put-Up (ft.): 500
    • Ship Weight (lbs.): 13
    • Jacket Color: BLACK
    • Notes: C
  • 543945 010U1000
    • Description: RG-59/U COAX
    • Put-Up (ft.): U1000
    • Ship Weight (lbs.): 25
    • Jacket Color: BLACK
  • 543945 010U500
    • Description: RG-59/U COAX
    • Put-Up (ft.): U500
    • Ship Weight (lbs.): 13
    • Jacket Color: BLACK

Note: C = CRATE REEL PUT-UP.

Revision Number: 1 Revision Date: 09-29-2005

© 2005 Belden Wire & Cable Company
All Rights Reserved.
