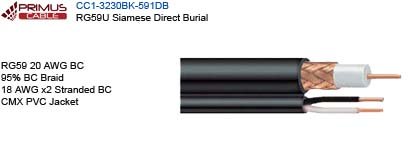

Direct Burial RG59 Siamese, (1) 20AWG Bare Copper Coaxial Cable with 95% Bare Copper Braid and (2) 18AWG Stranded Power Cables, CMX PVC Jacket for CCTV, 1000’ Spool, Black

Primus Cable

• Coaxial cable distribution of audio/video, radio • frequency CATV-MATV, computer/data processing and CCTV transmissions
• Direct Burial RG59U type coaxial cable with one pair of • 18AWG power cables
• Siamese type configuration with separation web•
• 20AWG solid bare copper conductor for optimal signal • transmission
• 95% bare copper braid coverage for optimal signal • protection
• Unshielded 18AWG stranded twisted pair power cables•
• Ideal for Direct Burial cable applications for CCTV•
• CMX, UV Rated•
• Supplied on wooden spools•

• 1C/20 AWG RG 59/U 2C/18AWG TYPE CL2 OR CM (ETL)us 3054335 DIR BUR

The information contained in this document is propietary to Primus Cable and may not be disclosed or transmitted to any other parties without the express written permission of Primus Cable. This information is provided for the purposes of quotation only.

• Velocity of Prop: 78%
• Capacitance: 16.3 pF/ft
• Impedance: 75 Ohms

• Conductor: Solid Bare Copper
• Dialectric Material: Gas Injected Foam
• Nominal OD: 0.140"

• Size: 36 AWG
• Material: Bare Copper
• Coverage: 95%

• Conductors: 7 Strand Bare Copper
• Insulation Material: 0.010" Polyvinylchloride (PVC)
• Nominal OD: 0.066"

• Final Material: Flame Resisitant Direct Burial PVC
• Jacket Color: Black
• Nominal OD: 0.237" x 0.427"

•       5 Mhz:   .75 dB /   .89 dB
•     55 Mhz: 1.84 dB / 1.95 dB
•   240 Mhz: 3.57 dB / 3.87 dB
•   300 Mhz: 3.99 dB / 4.27 dB
•   350 Mhz: 4.33 dB / 4.64 dB
•   400 Mhz: 4.66 dB / 4.88 dB
•   450 Mhz: 4.96 dB / 5.30 dB
•   500 Mhz: 5.22 dB / 5.50 dB
•   550 Mhz: 5.48 dB / 5.90 dB
•   600 Mhz: 5.75 dB / 6.18 dB
•   650 Mhz: 6.03 dB / 6.52 dB
•   700 Mhz: 6.28 dB / 6.83 dB
•   750 Mhz: 6.51 dB / 6.96 dB
•   800 Mhz: 6.71 dB / 7.30 dB
•   900 Mhz: 7.14 dB / 7.79 dB
• 1000 Mhz: 7.68 dB / 8.09 dB
