Specification for Approval

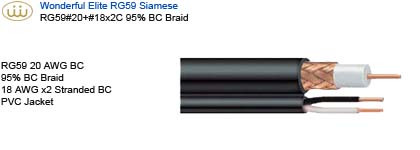

• Style: Coaxial Cable RG59/U + 18x2C
• Size: 20AWG Bare Copper, 95% Bare Copper Braid, 7X26 Bare Copper Strand x 2 Conductors

Specification

• Style: Coaxial Cable RG59/U
• Size: RG-59/U + 18x2 AWG

Construction:

• Conductor:
  • Size: AWG 20
  • Construction: 1/0.032 inch
  • Conductor Diameter: 0.032 inch
  • Material: Bare Copper
• Insulation:
  • Material: FPE
  • Average Thickness: 0.057 mm
  • Diameter: 0.146 +/- 0.006 inch
• Shielded:
  • 36 AWG Bare Copper 95% Coverage
• Conductor:
  • Twisted Pair AWG: 18 AWG Bare Copper
  • Twisted Pair Stranding: 7x26
  • Twisted Pair Conductor Diameter: 0.046 inch
• Insulation:
  • Twisted Pair Conductor: 0.66 inch PVC
• Jacket:
  • Average Thickness: 0.032 inch
  • Diameter: 0.242 x 0.480 inch
  • Color: Black or White
  • Electrical & Physical Properties:
  • Impedance (Ohm): 75 +/- 3
  • Capacitance (Pf/Ft): 16.3
  • Attenuation dB/100FT (20°C):
         50 Mhz: 2.00
       100 Mhz: 2.73
       200 Mhz: 3.80
       400 Mhz: 5.30
       700 Mhz: 7.40
       900 Mhz: 8.40
