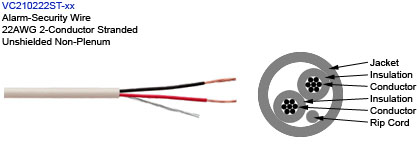

Alarm / Security Wire VC210222ST-xx
22AWG 2-Conductor Bare Copper
Stranded Unshielded Non-Plenum

CB-S-222D-xxx

Features:

  • Ideal for Indoor Remote Control of Security, Intercom, and Sound Systems
  •  Can also be used for Powering Limited-Control Circuits or Burglar Alarms
  •  PVC Outer Jacket
  •  Available in Pull Box
  •  Door Controllers
  •  Prox Sensors
  •  Key Pads
  •  Sound Systems
  •  Access Control
  •  Smoke Detectors

Description:

22/2 Stranded Bare Copper Conductors, Unshielded with an overall jacket.

Application:

  • Intercom Systems
  • Security Systems
  • Sound and Audio
  • Power Limited Control Circuits
  • Indoor Applications
  • Door Controllers
  • Key Pads
  • Smoke Detectors

Specification:

  • Conductor
    • Material: Bare Copper
    • Size: 22AWG
    • Diameter: 7/0.24mm
    • Conductors: 2 Conductor
    • Insulation: Polyvinyl Chloride (PVC)
    • Diameter: 1.10mm
    • Colors: Red, Black
    • Jacket: Polyvinyl Chloride (PVC)
    • Thickness: 0.45mm
    • Overall Diameter: 3.10mm
    • Rip Cord: Yes
  • Electrical & Physical Properties
    • Voltage: 300V RMS
    • Temperature: Rating 75ºC
