Features:

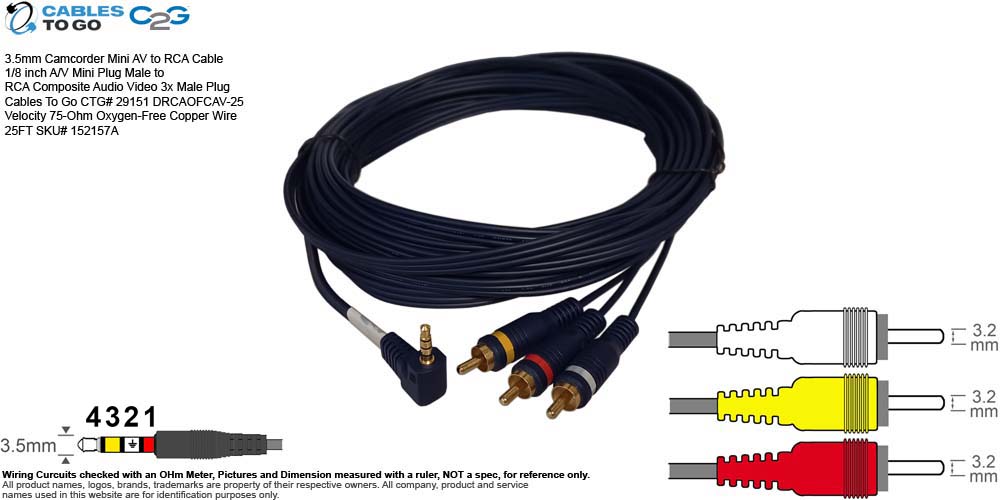

• Description: 3.5mm Camcorder Mini AV to RCA Cable 1/8 inch A/V Mini Plug Male to RCA Composite Audio Video 3x Male Plug Cables To Go CTG# 29151 DRCAOFCAV-25  Velocity 75-Ohm Oxygen-Free Copper Wire 25FT SKU# 152157A
• Manufacturer: Not Specified
• Brand: C2G / CTG / Cables To Go (a brand of Legrand)
• Model:
  • CTG# 29151
  • DRCAOFCAV-25
  • 757120291510
• Connectors:
  • 1x 3.5mm Mini Plug (3-Strip 4-Conducting-Area) AV Male Connector
  • 3x RCA Male Plug (Composite Video & Stereo Audio Left & Right)
• Pinout:
  • 3.5mm Plug Sleeve (Conducting Area #1) to Red RCA Male Pin
  • 3.5mm Plug Ring (Conducting Area #2) to Red / White / Yellow RCA Ground Sleeve
  • 3.5mm Plug Ring (Conducting Area #3) to Yellow RCA Male Pin
  • 3.5mm Plug Tip (Conducting Area #4) to White RCA Male Pin
• Overall Length: 25FT
• Weight: 8.9 oz (estimated shipping weight 12 oz)
• Condition: For Parts / New
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or Pulled from:
  • For use with Camcorders to TV, LCD, Monitor, VCR or A/V Receiver
  • Cable with 3 strips (4 conducting areas) physically supports transmission of Audio & Video. There is NO Standard wiring diagram specified the signals to those 4 conducting areas. Pinout subject to device and manufacturer.
