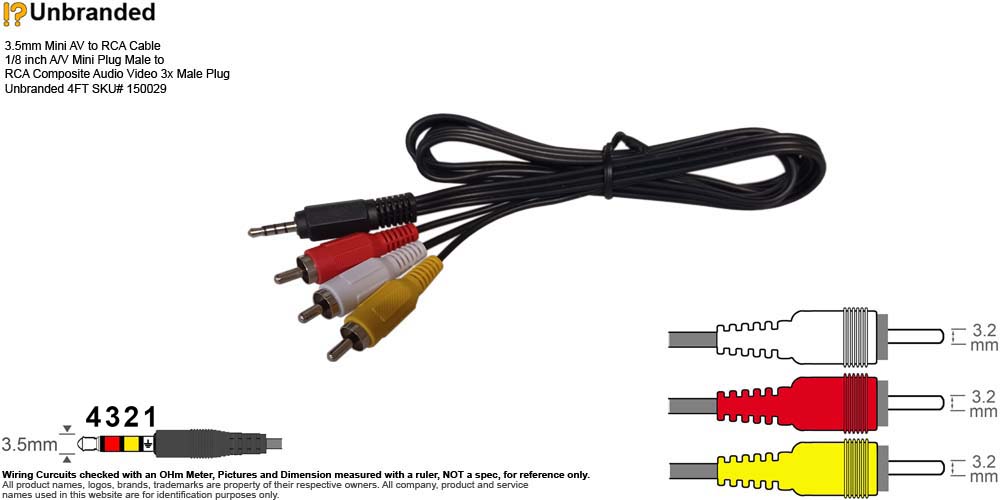

3.5mm Mini AV to RCA Cable
1/8 inch A/V Mini Plug Male to RCA Composite Audio Video 3x Male Plug
Unbranded 4FT SKU# 150029
CB-3.5VM-RCAM3-04

Features:

  • Description: 3.5mm Mini AV to RCA Cable 1/8 inch A/V Mini Plug Male to RCA Composite Audio Video 3x Male Plug Unbranded 4FT SKU# 150029
  • Manufacturer: Not Specified
  • Brand: Unbranded
  • Model: SKU# 150029
  • Connectors:
    • 1x 3.5mm Mini Plug (3-Strip 4-Conducting-Area) AV Male Connector
    • 3x RCA Male Plug (Composite Video & Stereo Audio Left & Right)
  • Pinout:
    • 3.5mm Plug Sleeve (Conducting Area #1) to White / Red / Yellow RCA Ground Sleeve
    • 3.5mm Plug Ring (Conducting Area #2) to Yellow RCA Male Pin
    • 3.5mm Plug Ring (Conducting Area #3) to Red RCA Male Pin
    • 3.5mm Plug Tip (Conducting Area #4) to White RCA Male Pin
  • Overall Length: 4FT
  • Weight: 1.7 oz (estimated shipping weight 5 oz)
  • Condition: For Parts / New
  • Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
  • For use with or Pulled from:
    • For use with Camcorders to TV, LCD, Monitor, VCR or A/V Receiver
    • Cable with 3 strips (4 conducting areas) physically supports transmission of Audio & Video. There is NO Standard wiring diagram specified the signals to those 4 conducting areas. Pinout subject to device and manufacturer.
