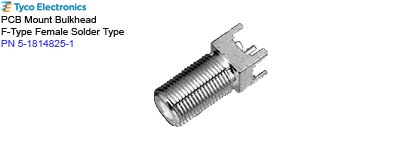

PCB Mount Bulkhead
F-Type Female
Solder Type
Tyco Electronics 5-1814825-1
BH-FTF-SLD-xxx
Link(s):
Product Type Features:
- Product Type =
Connector - RF
- RF Connector Type = F
Series
- Type of Connector = F
Series
- Gender = Jack
- Mount = Printed
Circuit Board
- PCB Mount Style =
Through Hole
- PCB Mounting
Orientation = Vertical
- Dielectric Material =
Polyethylene
- Sealed = No
- Body Material = Zinc
Termination Features:
- Termination Post
Length (mm [in]) = 3.00 [0.118]
Body Features:
Contact Features:
- Center Contact
Material = Phosphor Bronze
- Center Contact Plating
= Tin
Industry Standards:
-
RoHS/ELV Compliance = RoHS compliant, ELV compliant
-
Lead Free Solder Processes = Wave solder capable to 240°C, Wave
solder capable to 260°C, Wave solder capable to 265°C
- RoHS/ELV Compliance
History = Always was RoHS compliant
Conditions for Usage:
- Applies To = Printed
Circuit Board
Packaging Features:
- Packaging Quantity =
100/Box
Other:
|
