Features:

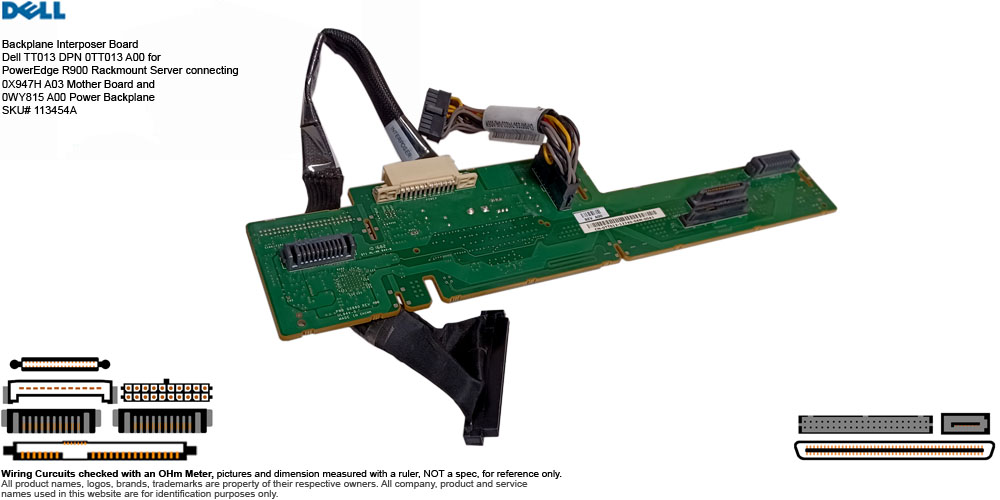

• Description: Backplane Interposer Board Dell TT013 DPN 0TT013 A00 for PowerEdge R900 Rackmount Server connecting 0X947H A03 Mother Board and 0WY815 A00 Power Backplane SKU# 113454A
• Manufacturer: Not Specified
• Brand or Distributor: Dell
• Model Number:
  • Dell TT013 A00
  • DPN 0TT013 A00
• Interface:
  • 1x 12-Pin Low Profile High Power Supply Input Receptacle
  • 2x 10-Pin Power Blade Cooling Fan Power Connector
  • 1x 20-Pin Micro-Fit 3.0-Pitch Mother Board Power Connector
  • 1x 40-Pin Mini Centronics 1.27-Pitch CDROM Connector
  • 1x 29-Pin SFF-8482 SATA Dive Connector
  • 1x 40-Pin IDC 2.0-Pitch Control Panel Connector
  • 1x 7-Pin SATA Connector
  • 1x 100-Pin Mini Centronics 1.27-Pitch Mother Board Planar Cable Connector
• Package Contains:
  • Dell TT013 DPN 0TT013 A00 Interposer Board (Weight 6.5 oz)
  • Dell 0RF256 A00 20-Pin Micro-Fit 3.0-Pitch Mother Board Power Cable (Weight 1.1 oz)
  • Dell 0P041P A00 100-Pin Mini Centronics 1.27-Pitch Mother Board Planar Cable (Weight 2.8 oz)
• Condition: Used, may have signs of cosmetic wear and signs of use.
• Weight: 10.4 oz (Estimated Shipping Weight 15 oz)
• Packaging: Non-Retail Packaging, in Unprinted or Reused Box or Plastic bag.
• For use with or saved from: (for reference only)
  • Pulled from Dell PowerEdge R900 Rackmount Server Computer for use with 0X947H A03 Mother Board and 0WY815 A00 Power Backplane.
  • Serial Numbers Available or Sold: CN-0TT013-13740-06M-00A1 A00, ...
