USB2.0 to SATA & IDE Combo Converter
USB 2.0 to Serial ATA & IDE Adapter

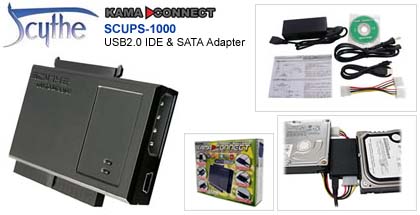

Scythe KAMA-Connect SCUPS-1000

GC-USB-SATA-KAMA


Easy Plug-n-Play Feature
Eliminate the hassle of opening your case, unscrewing and detaching the drives to connect and use it.  This Kama Connect can be used externally via USB, so simple!

Dual Mode Support!
Simultaneously connect the S-ATA & ATAPI drives (*The combined maximum output of 2 drives has to be less than 12V=Max. 2000mA, 5V=Max. 2000mA each).

Universal AC Adaptor with Power On/Off Function
The friendly universal AC Adaptor (100~240V, 50/60Hz) is included for carry-n-use among frequent overseas travelers!

All the Necessary Cables Included

USB cable (Ready for 2.0) & 4-pin split power cable are included in the package for ready-to-use! (*Only the adaptor/cable for ATAPI 2.5” is not included).

Specifications:
> Model Name: Kama Connect
> Model #: SCUPS-1000
> Manufacturer: Scythe Co., Ltd. Japan
> Dimensions:
   72.5 x 56 x 14 mm (Unit)
   115 x 57.5 x 32 mm (AC Adaptor)
> Compatibility
   * IDE 2.5-inch Drive - No Compatibility
if you have a gender changer for 2.5" IDE connector to 3.5" IDE connector
   * IDE 3.5-inch Drive
   * IDE 5.25-inch Drive
   * SATA 3.5-inch Drive
   * SATA 5.25-inch Drive

> OS:
   * Microsoft® Windows® 98SE
   * Microsoft® Windows® Me
   * Microsoft® Windows® 2000
   * Microsoft® Windows® XP
> Build-In LED:
   * Power On/Off
   * Access LED
> AC Adaptor:
   * Input:   100~240V, 50/60Hz
   * Output: 12V=Max. 2000mA, 5V=Max. 2000mA
   * Includes On/Off Power Switch

Notice: The Power LED light on Kama Connect illuminates once the unit is connected to a USB port.  The illumination does not correspond to the power On/Off switch.
