IDE to SATA Bi-Directional Converter
IDE-to-SATA or SATA-to-IDE
SY-BIR-IDESA Jmicro JM20330 Chipset
GC-IDE-SY-BIR

Brief:
> Bi-Directional converter for Serial ATA and Parallel ATA. This Adapter Does-it-All, SATA Hard Drive to IDE Converter or IDE Hard Drive to SATA Host Converter.
> This is a bi-direction converter for serial and parallel ATA translation. It includes the Serial ATA PHY, Link, Transport, and Parallel ATA (application layer) controller.
> The Serial ATA physical, link, and transport layers are compliant to Serial ATA 1.0.This converter supports 1.5GHz data rate.

Features:
> Jmicro JM20330 Chipset
> Plug & Play and Hot-swapping capability
> 150MB/s transfer rate
> Automatic SATA 3.0/1.5 Gbps speed negotiation
> Serial-ATA 1.0 specification compliant
> Support Serial ATA hot-plug
> Support ATA Host Bridge
> Support ATA PIO and UDMA modes 0 to 4
> ATA / ATAPI Ultra DMA of transfer rate 16.7, 25, 33, 48, 66, 100, 133, and 150MB/s
> ATA / ATAPI LBA48 addressing mode associated with 2-byte sector count
> Support 3.5” IDE hard drives and 5.25” optical drives
> Ultra low power consumption
> Work for both AC and DC couple between the transmitter and the receiver
> Provide specified OOB signal detection and transmission
> Support Spread Spectrum Clocking to reduce EMI
> Support Partial/Slumber power management
> Provide adjustable TX signal amplitude and pre-emphasis level
> Master/Slave mode support
> Support Windows 98SE/ME/2000/XP/Vista Operating System

Package Includes:

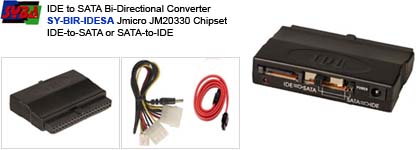

> Includes Bi-directional Adaptor, SATA Cable, Power Cable, CD Driver, and User manual.
