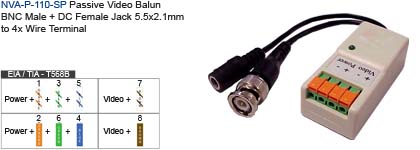

Passive Video Balun (Terminal Type), Power Pass-Through, Monitor Side
NVA-P-110-SP passive video balun for terminal type connections is the perfect solution for utilizing Cat5e or UTP cable to extend the distance of your security camera up to 500 feet of data and power. Video balun allows for convenient video and power transmission over distance without dragging heavy and expensive coaxial cables and having a power outlet near by to power up the camera. Note: The video balun does not convert power to 12V. Do not use power over 12V or you may burn the camera.
Features:
-
Passive video balun
-
Monitor side
-
Power and voltage will pass through
-
Terminal Block
-
BNC and DC cable
-
6-inch Pigtail Cable
Video Signal Distance for Passive / Active Video:
Passive Video Balun to Passive Video Balun 1000 feet Passive Video Balun to Active Video Balun 4000 feet Active Video Balun to Passive Video Balun 4000 feet Active Video Balun to Active Video Balun 6000 feet
Power Transmission Distance:
Power Adapter Cat.5e Cable Power Cable @250 mA UTP 1-pair UTP 2-pair UTP 3-pair 22 AWG 18 AWG 18V DC 100 ft 300 ft 650 ft 1000 ft 1500 feet 24V DC 300 ft 600 ft 1000 ft 1300 ft 1800 feet 48V AC/DC 600 ft 1000 ft 1500 ft 2000 ft 2500 feet
